White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

Product Categories
ESEN HK LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

  • 1
  • 2

Brand Name : ESEN

Model Number : TX096PM2864-1

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : 1000PCS

Price : Please make an enquiry

Payment Terms : T/T,L/C

Supply Ability : 300K/mth

Delivery Time : 2-4 weeks

Packaging Details : All the products are packed in right way

Display Mode : Passive Matrix

Display Color : Monochrome (Yellow＆Blue)

Drive Duty : 1/64 Duty

Outline Drawing : According to the annexed outline drawing

Number of Pixels : 128 x 64

Panel Size : 26.70 x 19.26 x 1.25 (mm)

Active Area : 21.74 x 11.2(mm)

Pixel Pitch : 0.17 x 0.17(mm)

Pixel Size : 0.15 x 0.15 (mm)

Driver IC : SSD1306

FP C Numbe : NFP1306-133

Interface : 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C

Luminance : 100cd/m2

FPC Connecting Mode : 30 Pin Soldering FPC

Weight : 1.54 (g)

Datasheet : Please contact service

Contact Now

White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
Product Specifications
Attribute Value
Display Mode Passive Matrix
Display Color Monochrome (Yellow＆Blue)
Drive Duty 1/64 Duty
Number of Pixels 128 x 64
Panel Size 26.70 x 19.26 x 1.25 (mm)
Active Area 21.74 x 11.2(mm)
Pixel Pitch 0.17 x 0.17(mm)
Pixel Size 0.15 x 0.15 (mm)
Driver IC SSD1306
FP C Number NFP1306-133
Interface 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
Luminance 100cd/m2
FPC Connecting Mode 30 Pin Soldering FPC
Weight 1.54 (g)
Product Details

0.96 Inch 128x64 White Blue Color Mono OLED Display with 30Pin Monochrome PMOLED Screen Panel featuring SSD1306 SPI/I2C Interface (Model: X096-2864TMBEG03AT-H30). This folding type OEL display module features COG package with pixel number of 128 x 64.

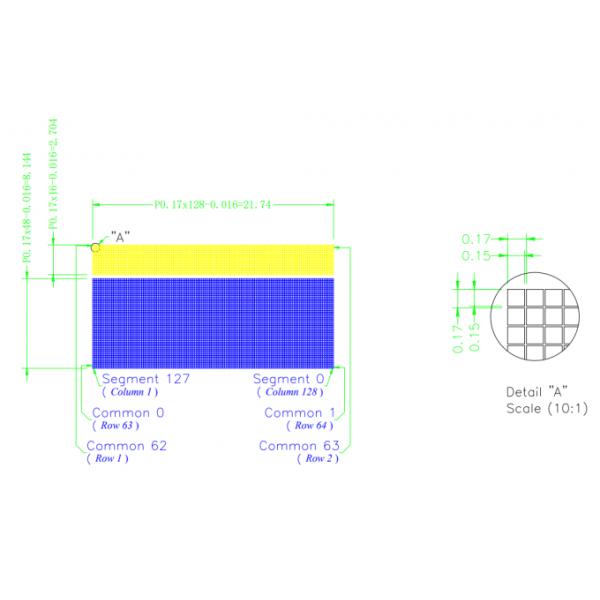

Active Area & Memory Mapping
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface

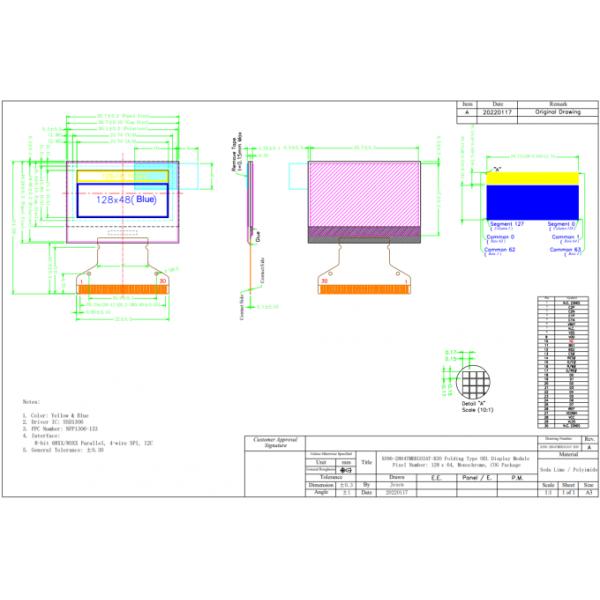

Mechanical Drawings
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
Technical Specifications
White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface White Blue 0.96in Mono OLED Display 30Pin PMOLED Screen SSD1306 SPI I2C Interface
Frequently Asked Questions
How can I find the right product?
Please send us your requirements, we will recommend our standard products. If they don't fit, we will make necessary adjustments and customizations.
How to customize the product?
Customization process: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost evaluation → Customer confirmation → Provide drawing → Customer confirmation → Sampling → Customer approval → Mass production.
Do you accept sample orders or small quantity orders?
Yes, you can place sample orders for testing first, and small quantity orders as pilot production (no less than MOQ).
What are the payment terms?
We usually accept T/T, PayPal, with other terms negotiable.
What's the lead time?
Typically 3-5 days for sample orders if goods are in stock, and 4-5 weeks for mass production (based on quantity and product).
